Multirotor Components and Vortex Ring Awareness

A multirotor is simple to fly until margins shrink

Modern stabilisation can make a multirotor feel easy, but the pilot still needs to understand motors, arms, battery mounting, GPS, flight controller behaviour and how weight, power, ground effect and wind change performance.

Descent planning matters. A steep vertical descent in disturbed rotor airflow can lead toward vortex ring state, especially with little horizontal movement and high power demand.

A 12 second loop of a drone's electrical system drawn as connected blocks. Power flows from the battery through a connector to the power distribution board, then to the ESCs and motors, the flight controller and the payload camera. The propellers spin up. The remote controller's command link reaches the receiver, the GPS receives satellite signals, and the flight controller sends commands to the ESCs and data out through the telemetry radio back to the pilot. The labels name the five connected parts: power, control, navigation, telemetry and payload. Then one weak link fails, chosen with the buttons: a damaged battery connector makes the power flicker everywhere downstream, so the response is land and inspect; weak GPS or command link interference makes position or control uncertain, so the response is to fly conservatively. The still frame shows the whole system working, with all five labels.

Know the components and what they do

The centre body, arms, motors, motor mounts, landing gear, battery mount and payload fittings carry the loads. The ESCs, receiver, antennas, IMU, flight controller, GPS and battery make the aircraft controllable.

Component knowledge is practical. A cracked arm, loose motor, damaged antenna, shifting battery or poor GPS installation can change the flight before the pilot sees a clear warning.

• Inspect arms, mounts, propellers, landing gear, battery retention and payload attachment.
• Check antennas and GPS/compass areas for damage or interference risks.
• Treat unfamiliar vibration, noise or control response as a reason to land and inspect.

Read the Inside a multirotor transcript

Weight, power, ground effect and wind change performance

More weight means more thrust is needed to hover, climb and stop descent. Less power margin means the aircraft has less spare control authority when wind, heat, altitude or payload demand increases.

Ground effect can make a multirotor feel more efficient close to the surface, but that help fades with height. Wind can improve or degrade the recovery and landing picture depending on direction, turbulence and available space.

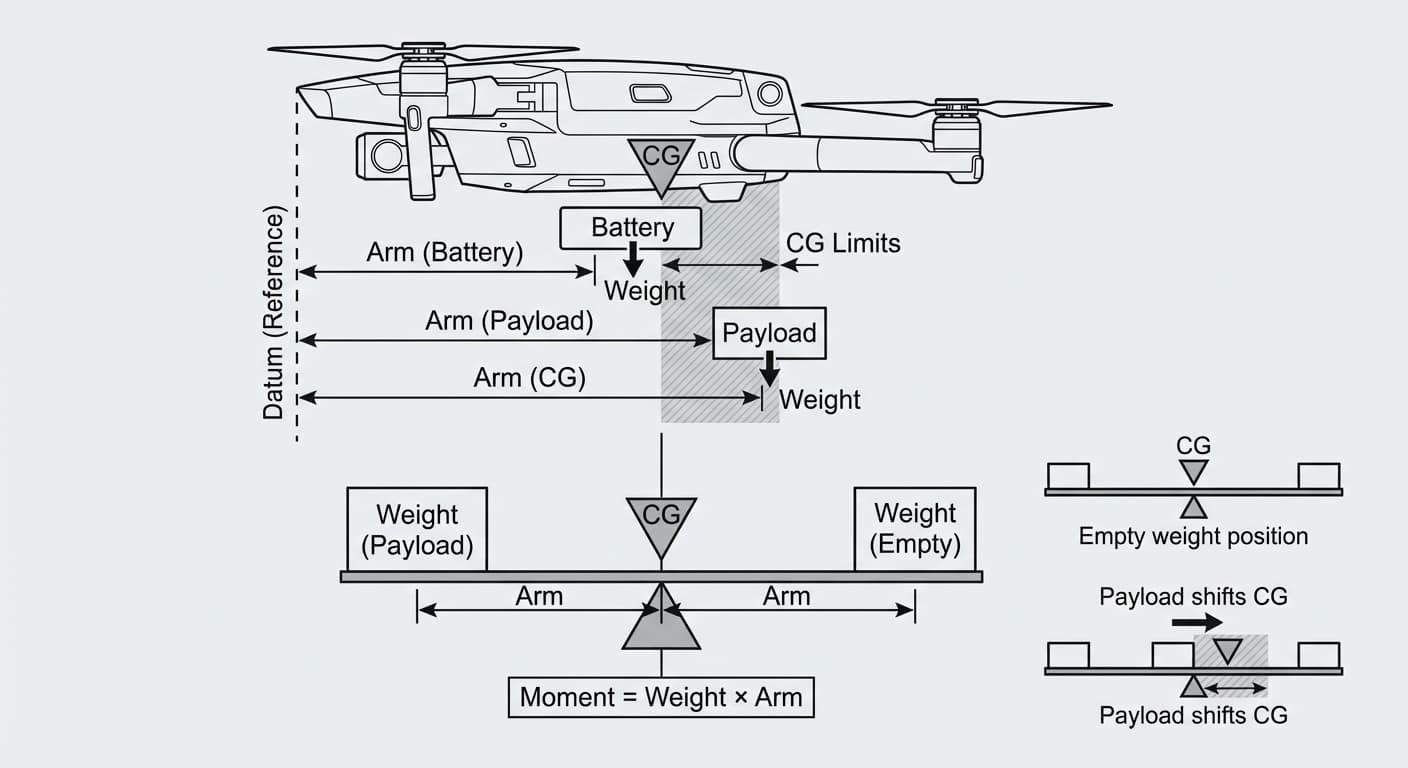

A 12 second loop showing a multirotor hovering, seen from the side with its nose to the left. A dashed datum line stands at the nose, and an arm dimension runs from the datum to the centre of gravity (CG). A payload hangs under the body. When the payload is centred, the CG is at the centre of the rotors and the front and rear thrust arrows are equal. When the payload slides forward, the CG moves forward, the arm gets shorter, the nose briefly dips, and the front motor, the one nearest the CG, makes more thrust and is marked as working harder while the rear motor makes less. When the payload slides aft, the rear motor works harder. The payload then returns to the centre. Thrust arrow lengths are schematic. The still frame shows the payload forward with the front motor working harder.

Rotor blades make lift, drag and torque

A rotor blade is an aerofoil. Blade shape, twist and taper help create useful thrust across a spinning disc where the inner and outer parts of the blade move at different speeds.

The pilot does not directly feel rotor thrust or torque, but they see the result as hover performance, yaw authority, climb response and control margin.

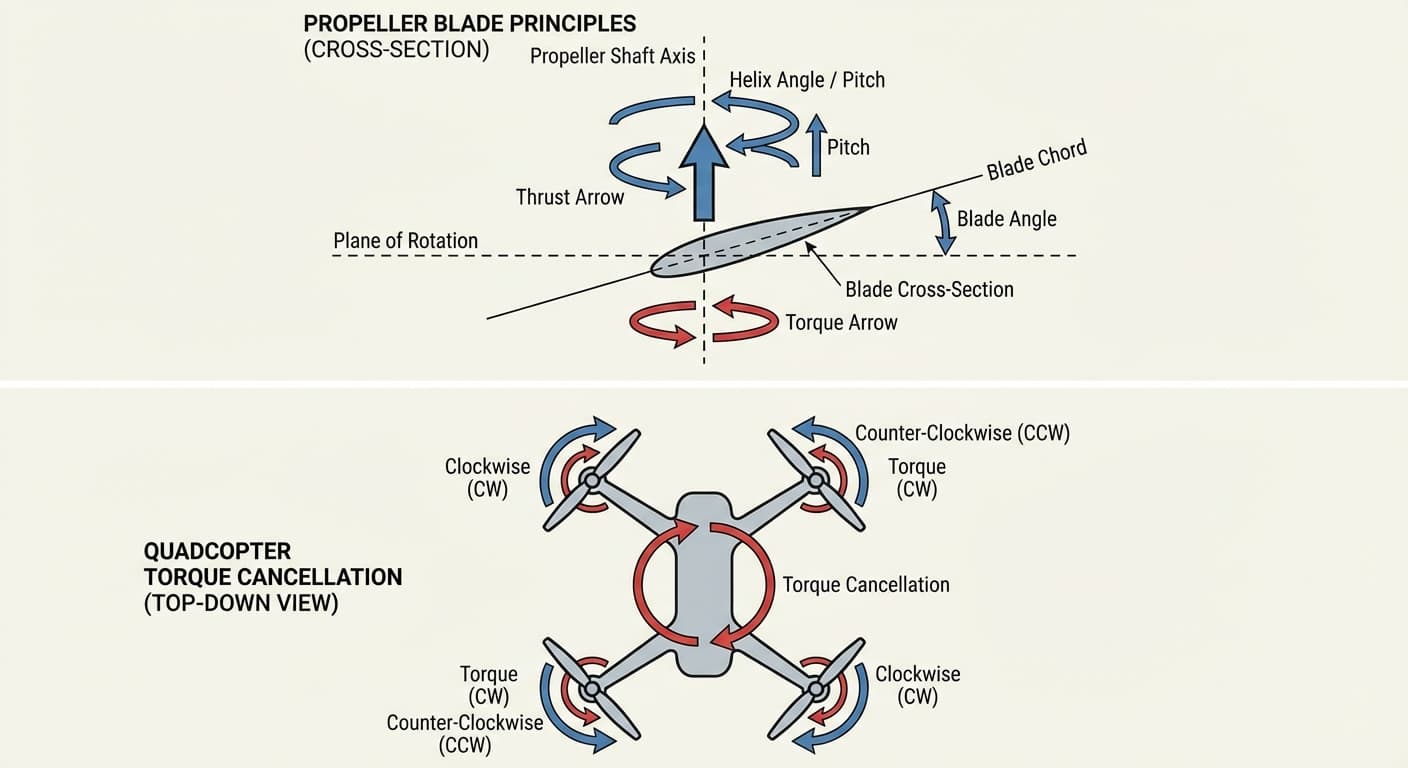

Three steps of about four and a half seconds each. Step 1, blade section: a two-blade propeller spins on a motor, and its disc is the plane of rotation. A cross-section of one blade is an aerofoil. Its chord line is tilted from the plane of rotation by the blade angle, leading edge first, as the blade moves through the air. Step 2, thrust: the blade turns the air downward, air is drawn into the disc and pushed down below it, and thrust acts upward along the shaft, at right angles to the plane of rotation. Step 3, torque, viewed from above: a quadcopter's diagonal pairs spin in opposite directions, front-left and rear-right clockwise (CW), front-right and rear-left counter-clockwise (CCW). The CW pair pushes the body counter-clockwise and the CCW pair pushes it clockwise. The reactions are equal and opposite, so the torques cancel and the aircraft does not yaw. The still frame shows step 2.

Hovering and forward flight are different airflow problems

In a hover, the aircraft is working in a mostly vertical airflow pattern. In forward flight, the rotor disc meets cleaner air and the aircraft also deals with drag from the frame and payload.

This is why a multirotor can feel different when it transitions from hover to forward flight, turns downwind, or descends near obstacles and turbulent air.

Side view of a multirotor with a camera payload, with streaks showing the air. In a hover the rotors draw air from above and push it down in a mostly vertical column, which spreads out along the ground. The drone then tilts forward and accelerates. In forward flight the rotor disc meets clean, undisturbed air arriving from ahead, the rotor wake sweeps back behind the aircraft, and air flowing around the frame and payload leaves a turbulent drag wake. The drone then slows, flares and returns to a hover. With the near-a-wall option, the hover downwash hits the wall, rises and curls back toward the rotors as disturbed air. Schematic, not a measured flow field.

Controls move the aircraft around three axes

Roll, pitch, yaw and throttle commands are translated by the flight controller into motor-speed changes. Stabilisation and GPS hold can make this feel simple, but the pilot should still understand what the aircraft is trying to do.

If GPS hold is unavailable, wind and inertia become more obvious. If stabilisation is degraded, the pilot may need a much simpler recovery plan.

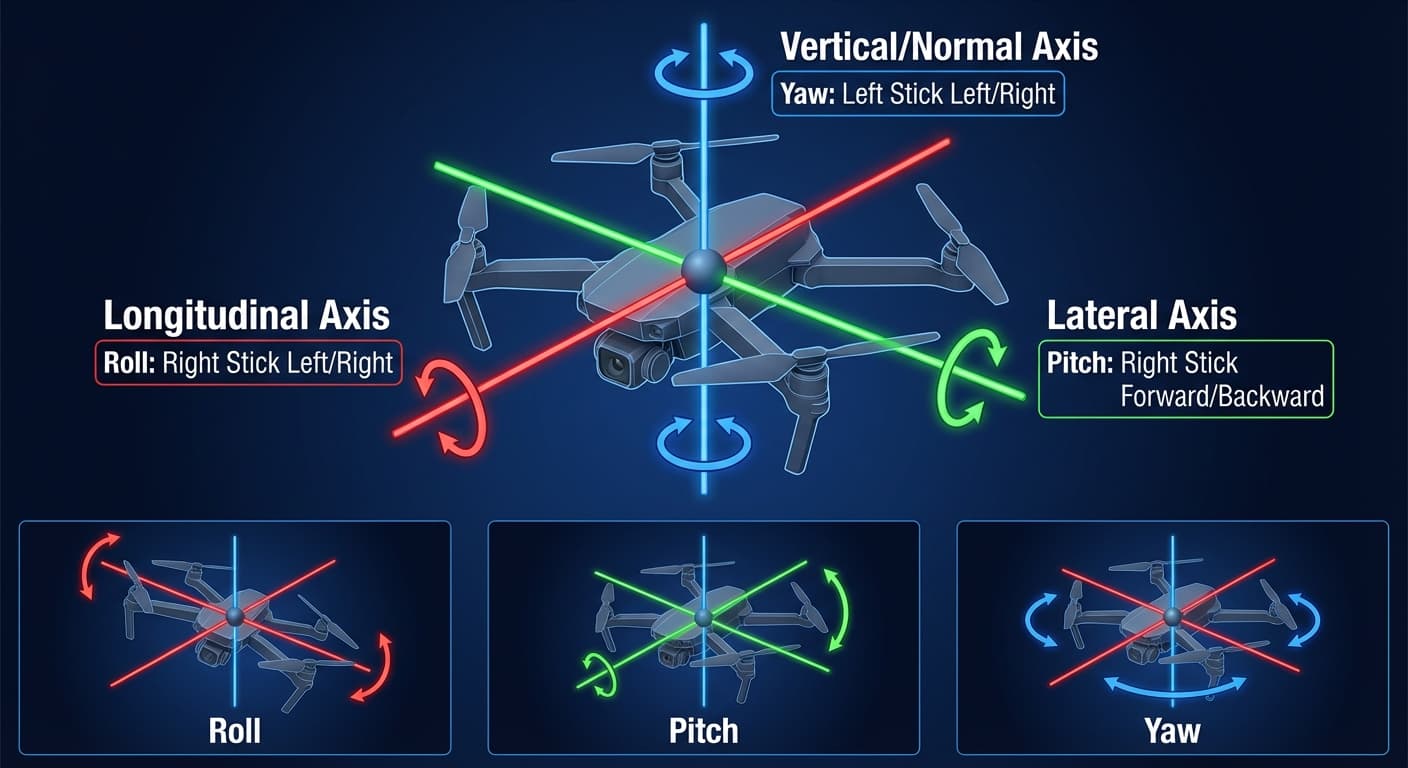

A multirotor drone with its three axes drawn through the centre of gravity: the longitudinal axis (red, nose to tail), the lateral axis (green, left to right) and the vertical or normal axis (blue, top to bottom). The drone rolls about the longitudinal axis (tilting left and right), then pitches about the lateral axis (nose up and down), then yaws about the vertical axis (nose turns left and right without tilting), then does all three together. The axes are fixed to the drone and move with it.

Launch and climb are performance checks

Pre-launch checks confirm that the aircraft, crew, site and airspace are ready. Post-launch checks confirm that the aircraft is actually performing as expected before it moves away from the recovery area.

Climb performance is affected by weight, power, airspeed, wind, bank angle, temperature and altitude. A slow climb or unexpected drift early in the flight is useful information, not something to ignore.

Turns and descents need margin

Banked turns, flat turns and steep manoeuvres all have limits. The tighter the area and the stronger the wind, the more important it is to slow down and leave space for correction.

Descending, landing and recovery should be planned into wind where appropriate and with enough horizontal and vertical margin to avoid disturbed airflow, obstacles and rushed control inputs.

Read the Vortex ring state transcript

Recover by changing the airflow problem

The practical idea behind vortex ring recovery is to leave the disturbed column of air. That normally means reducing the vertical descent condition and moving laterally or forward as appropriate for the aircraft and environment.

A multirotor seen from the side, in three steps. Step 1, normal descent: the aircraft descends while moving forward, so its rotor downwash goes down and is left behind, and the rotors keep meeting clean air. Step 2, vortex ring: the aircraft descends steeply with little horizontal movement and sinks into its own downwash. The air around the rotor tips recirculates in rings (down through the rotors, out, up and back in), a red column of disturbed air forms, and the aircraft wobbles. Step 3, recovery: the vertical descent is reduced and the aircraft moves laterally out of the disturbed column, which is left behind and fades, and clean downwash returns. The airflow is schematic. Use the manufacturer's recovery guidance and operator procedures for the aircraft in use. The still frame shows step 2.

• Avoid steep vertical descents with little horizontal movement.
• Keep enough height and lateral room for recovery.
• Use the manufacturer's recovery guidance and operator procedures for the aircraft in use.

Abnormal multirotor behaviour needs early action

Incorrect propeller installation, motor failure, ESC failure, GPS loss, IMU disagreement, loose payload or structural damage can all create abnormal behaviour. Stabilisation may mask the early signs until the margin is already shrinking.

If the aircraft yaws unexpectedly, will not hold position, vibrates abnormally, climbs poorly or shows repeated warnings, simplify the task and recover while the aircraft is still controllable.
