Map Position, Latitude/Longitude and Runway Orientation

A map turns the flight into a position problem

Before a remote pilot thinks about altitude, airspace or weather, they need to know exactly where the operation is. Aviation charts, approved apps and operator procedures all start with a position: the operating area, nearby aerodromes, controlled airspace, restricted areas, terrain and emergency landing options.

Latitude and longitude give that position a common language. They let a pilot, observer, chief remote pilot, air traffic service or emergency service talk about the same place without relying on local descriptions such as beside the shed or near the creek.

• Use coordinates to define the operating site and nearby hazards.
• Use current chart and app data to check what surrounds the site.
• Keep screenshots or records only where your operator procedures require them.

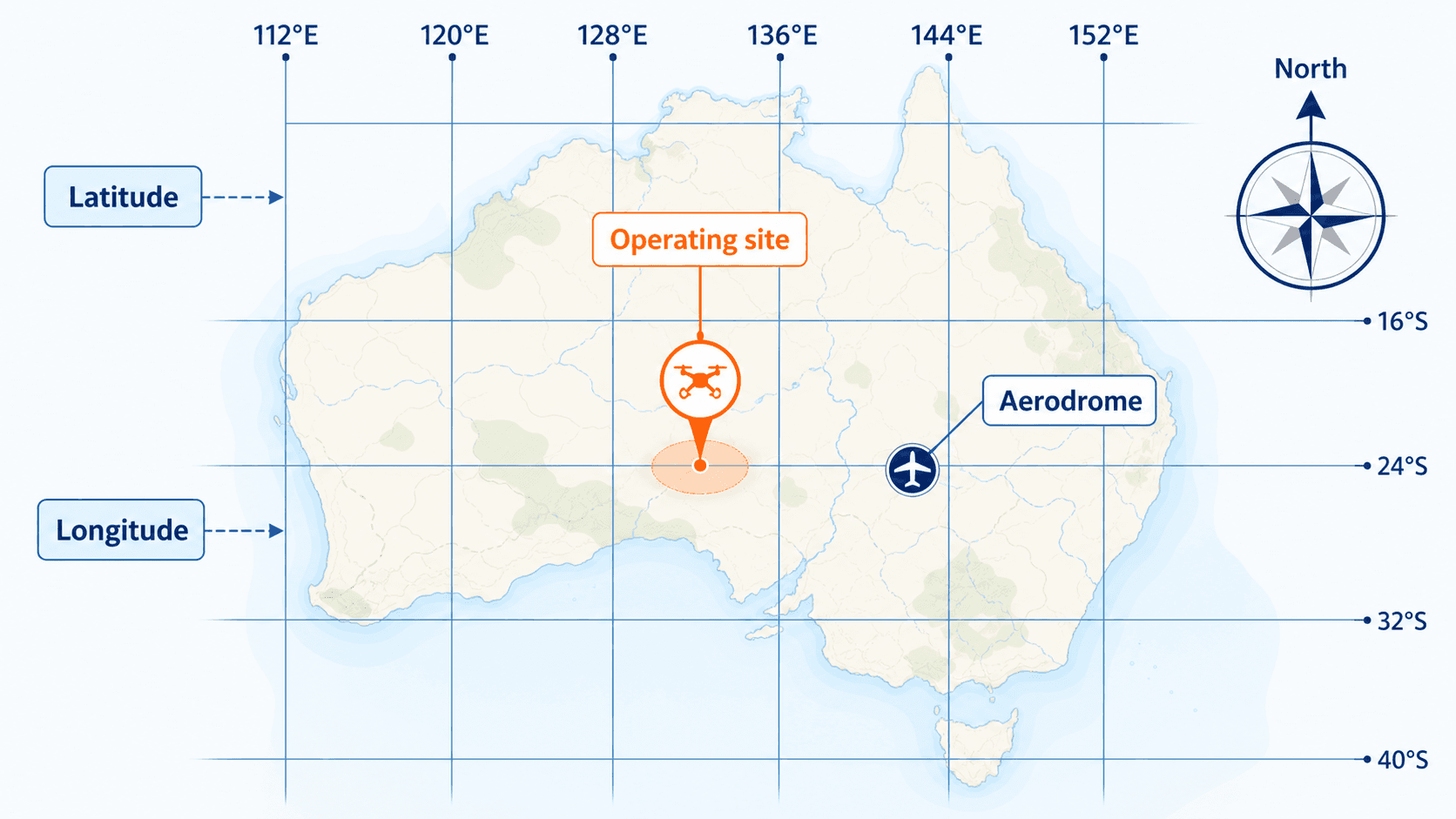

Latitude and longitude are the grid

Latitude lines run east-west across the chart, but they measure how far north or south a position is from the equator. In Australia, latitude is normally written south, such as 27°S.

Longitude lines run north-south across the chart, but they measure how far east or west a position is from the Greenwich meridian. In Australia, longitude is normally written east, such as 153°E.

The simple check is this: latitude tells you north/south position; longitude tells you east/west position. Do not swap them when copying coordinates into an app, flight plan or job note.

• Latitude first, longitude second is the normal aviation and mapping convention.
• South and east matter. A missing S or E can put a coordinate in the wrong hemisphere.
• Decimal degrees and degrees/minutes/seconds are different formats; convert carefully.

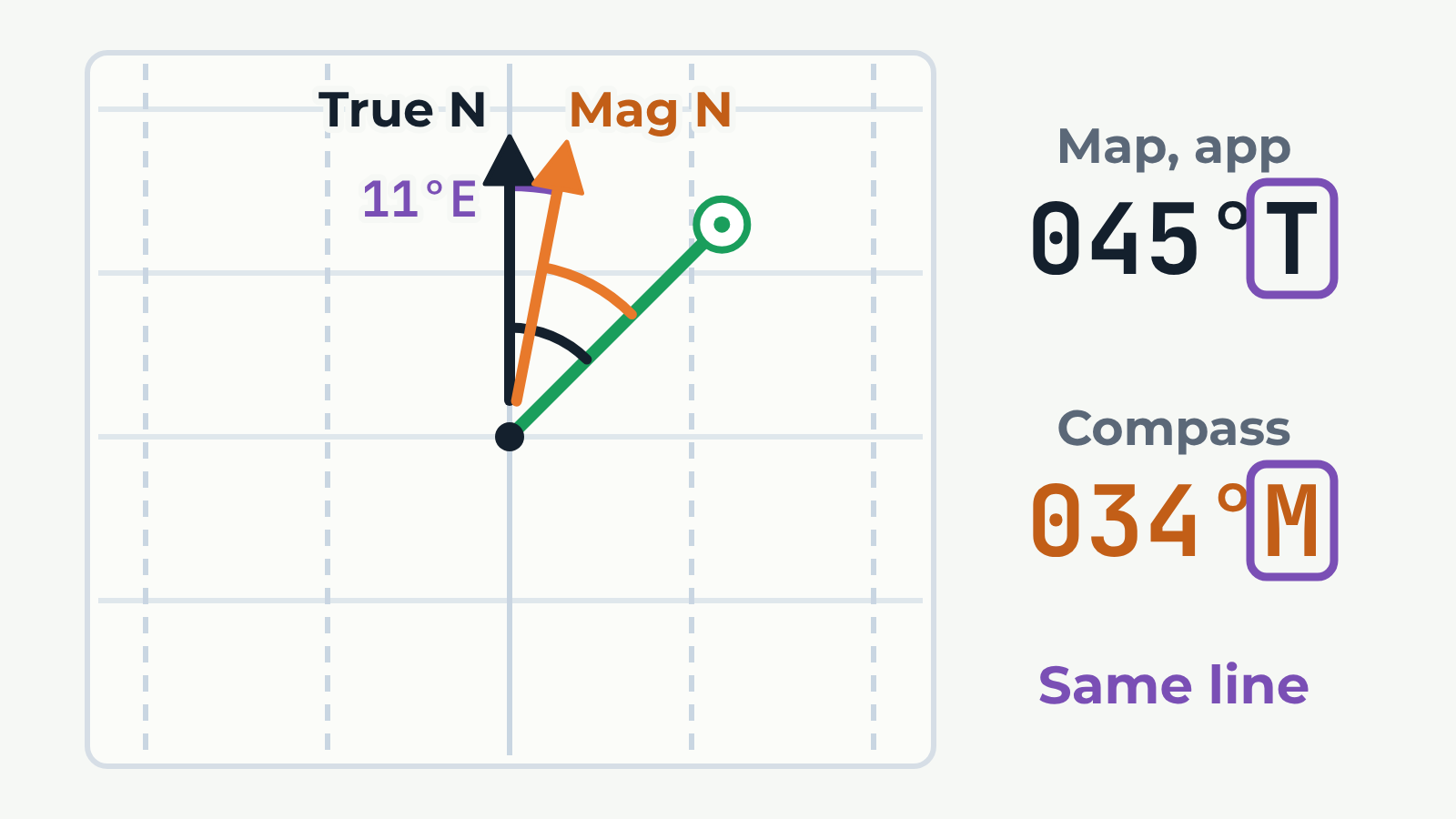

True north and magnetic north are not the same thing

True north points to the geographic North Pole. Magnetic north points toward the earth's magnetic field, and the angle between true north and magnetic north is called variation.

Charts and aviation procedures may use true or magnetic direction depending on the context. A runway number is based on magnetic direction. Some planning tools and maps may display true direction unless configured otherwise.

For RePL study, the important habit is not memorising a local variation. It is checking what reference the source is using, applying the conversion correctly and recording the direction in the same reference system as the procedure or chart.

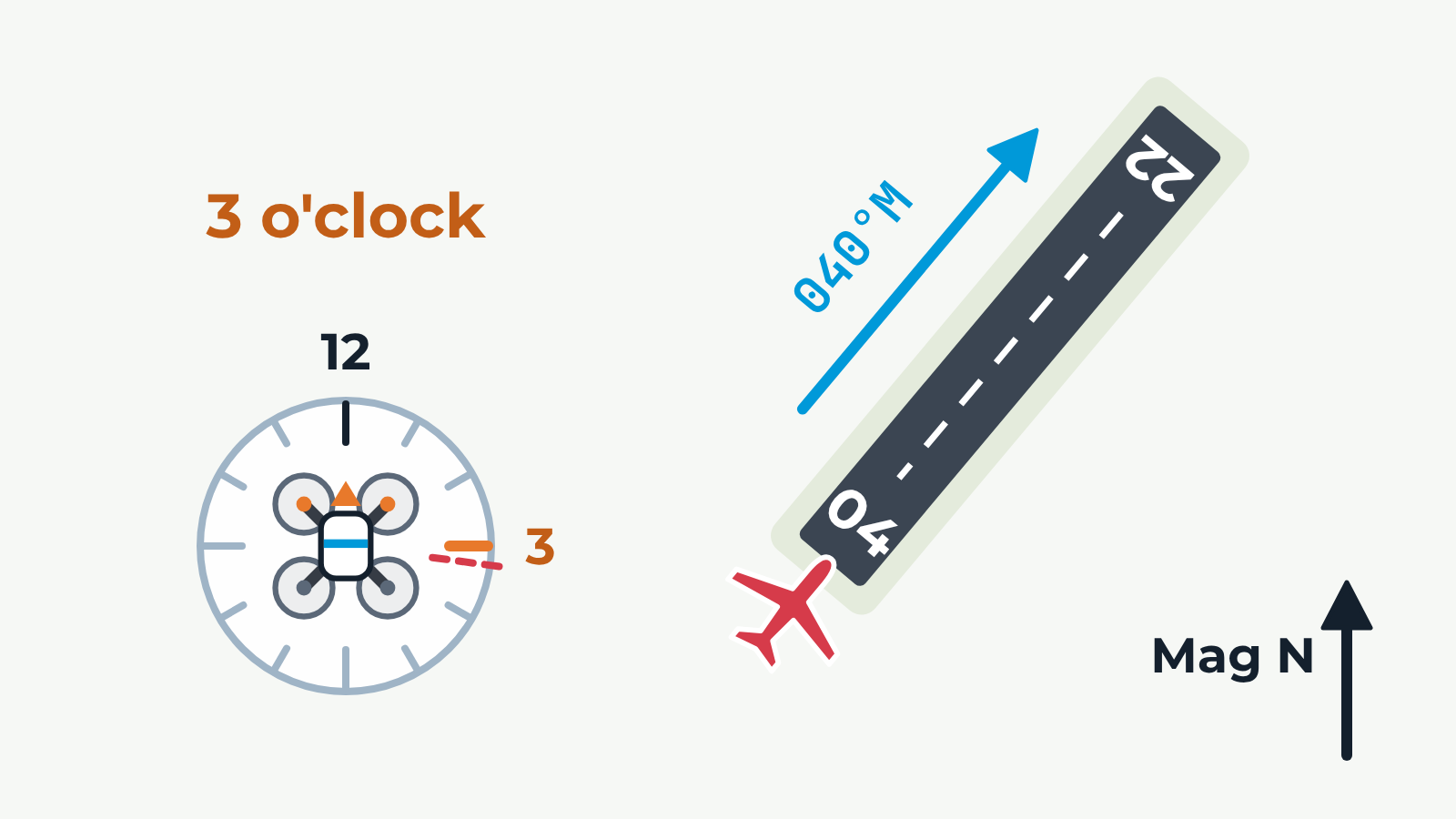

Runway numbers are direction clues

Runway numbers are shorthand for magnetic direction rounded to the nearest 10 degrees. A runway marked 04 is aligned roughly 040° magnetic. The opposite end is about 180° different, so it is marked 22.

Remote pilots are not using runway numbers to land an RPA unless authorised and trained for the operation. The value here is orientation. If a nearby aerodrome has runway 04/22, you can quickly picture likely approach and departure directions and brief observers more clearly.

That does not replace an airspace or aerodrome check. It simply gives the pilot another visual anchor when interpreting charts, NOTAMs, ERSA information or aerodrome procedures.

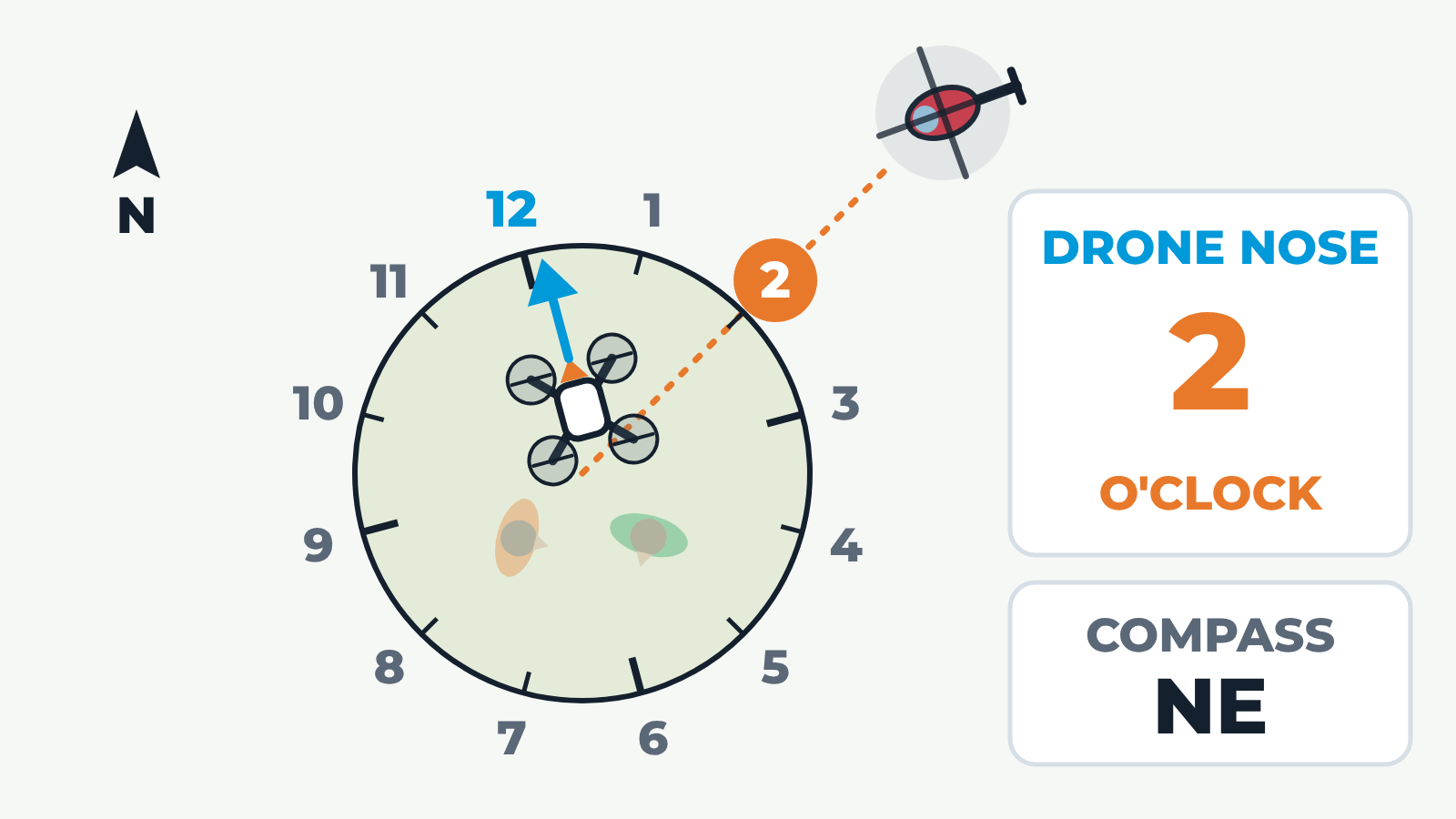

Clock code is relative, not geographic

Clock-code direction is useful when a pilot or observer needs to point out traffic quickly. It does not describe north, south, east or west. It describes where something sits relative to the aircraft nose or another briefed reference.

If an observer says traffic is at 2 o'clock, the pilot should understand it as ahead and to the right of the reference direction. For RPA work, agree the reference before the flight because the pilot, observer, controller screen and aircraft nose may not all face the same way.

Good crews avoid clever wording. If clock code could be ambiguous, add plain language: helicopter at 2 o'clock, high, moving left to right, north of the site.

• Use compass direction for fixed locations.
• Use clock code for quick relative traffic calls.
• Add altitude, movement and threat level when it helps the pilot decide.
